| Tile size |
475mm x 262mm |

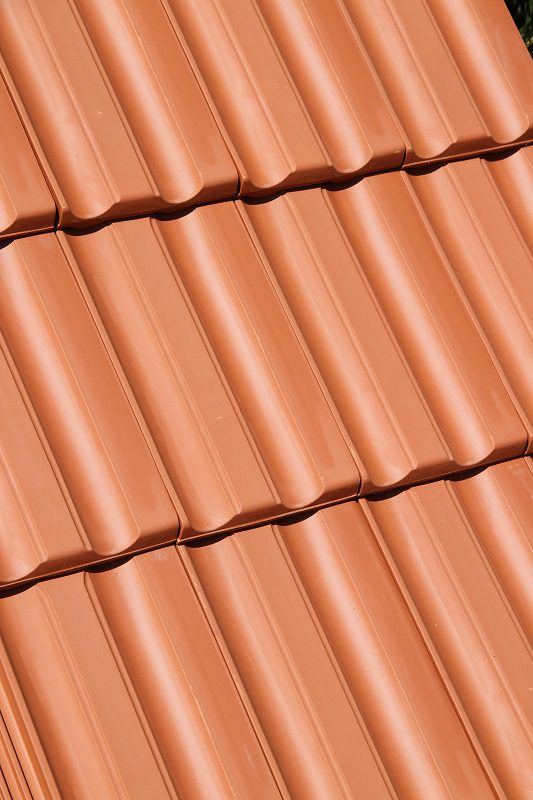

| Colours Available |
Graphite, Red, Moss Red |
| Minimum roof pitch |
12.5° *Consult LBS technical department |
| Minimum headlap |
75mm |
| Maximum headlap |
120mm |
| Batten spacing at min. gauge |
355mm |
| Batten spacing at max. gauge |
400mm |
| Covering capacity per m² |
11.4 tiles per m² when fitted at 75mm headlap |
| Hanging length |
450mm |
| Nominal cover width |
220mm |
| Weight per tile |
3.15kg |
| Weight as laid |
36.14kg per m² when fitted at 75mm headlap |
| Quantity per pallet |
280 |
| Battens per m² |
2.51 linear metres when fitted at 75mm headlap |
| Batten size |
50mm x 25mm |
| Fixing from 12.5° – 17.5° |
Tiles must be twice fixed with soltera screws, and all eave tiles clipped using the soltera fixing clip. (For pitches below 15° consult LBS Technical Department for specific fixing guidelines) |
| Fixing from 17.5° – 50° |
Tiles must be twice fixed with 50mm x 3.35mm aluminium ringshank nails with clout head and all eave tiles clipped using the Soltera fixing clip. (For pitches greater than 50° consult LBS Technical Department for specific fixing guidelines) |
| Accessories available |
Dry verge, dry ridge and ventilation products |
