Snowdon® XL

£100.00
Tax included.

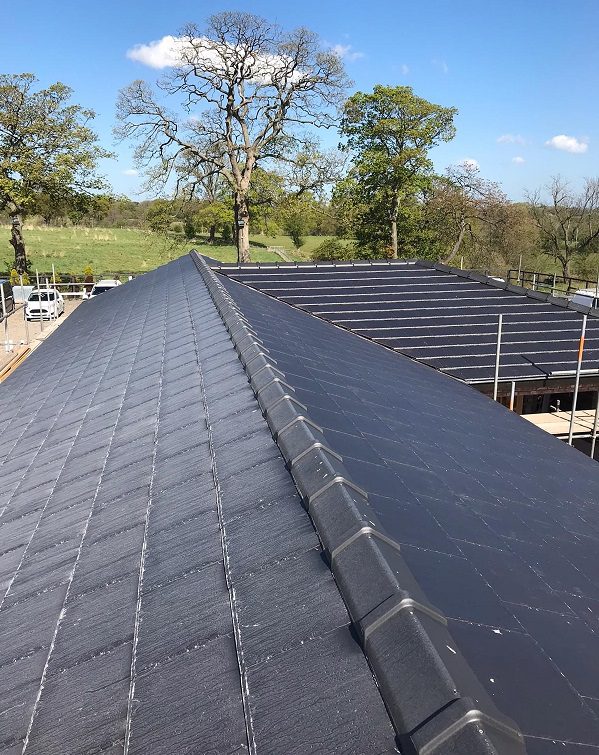

The Snowdon XL is the largest format clay roof tile available on the market

It is a double sized Snowdon (510x457mm), with only 5.5 tiles required per m²

The Snowdon XL is extremely aesthetically pleasing and gives a natural looking large format slate appearance

The Snowdon XL is available in a range of permanent colours including slate black, and our digitally printed reclaimed heather (Bangor Blue) and reclaimed green slate (Irish Green)

It is extremely quick and easy to install, and is ideal for large open areas

This tile can be used in roof pitches as low as 15.5 degrees (please speak to the LBS technical team for guidance on low pitch scenarios)

The Snowdon XL is covered by a 60 year warranty

Tile Size 510(w) x 457mm(l)
Minimum Roof Pitch 15.5 degrees / For 12.5 degrees contact LBS
Minimum Headlap 65mm
Maximum Headlap 100mm
Batten Spacing at Max Gauge 390mm
Batten Spacing at Min Gauge 340mm
Covering Capacity per m2 5.5 tiles per m² at max. gauge
Hanging Length 445mm
Nominal Cover Width 475mm
Weight per Tile 6.7kg
Weight of tiling per m2 (approx) 36.18kg
Leading Edge Depth 8mm
Battens Required per m2 (approx) Min 2.55, Max 2.80
Batten Size – up to 450mm rafter 50x25mm
Batten Size – up to 600mm rafter 50x37mm NB. Special fixing req
Batten Size RoI 45x35mm
Tile Nails Soltera Fixing System
Tile and Eave Clips Soltera Fixing System
Accessories Available Dry Verge, Ridge and Ventilation
